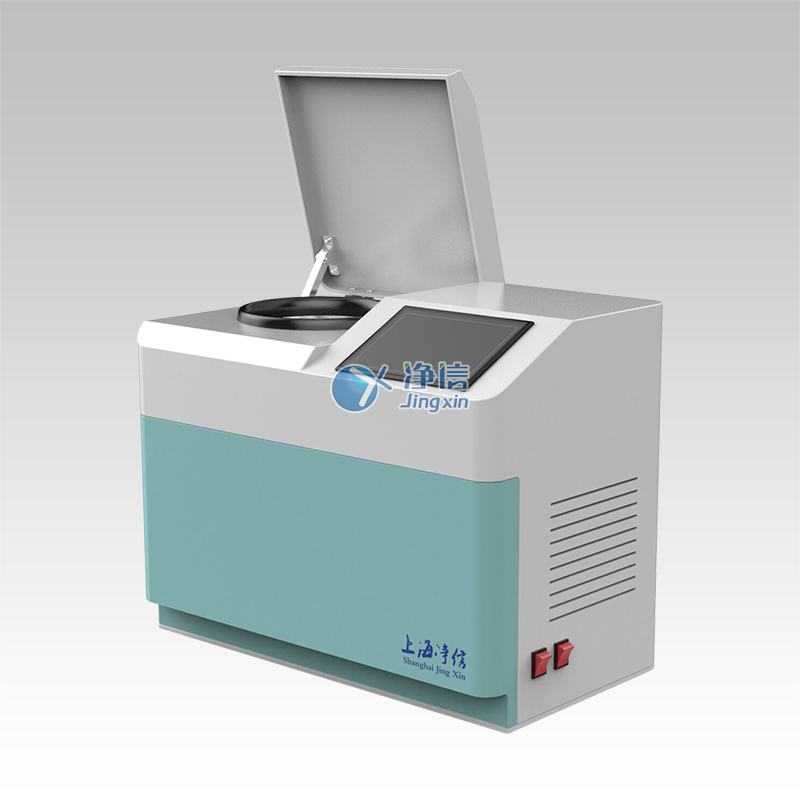

Cryogenic tissue grinder

Model:JXFSTPRP-CLN-48L

Brand:Shanghai Jingxin?

Specifications :48 bits

Introduction:Haijingxin?'s JXFSTPRP-CL? cryogenic tissue grinder is a special, fast, efficient, multi-test tube consistent system. It can extract and purify the original DNA, RNA and protein from any source.

Brand speciality

1. There are many experimental data, and the paper retrieval shows that it has broken through 1184 papers.

2. It has more than eight patents related to grinding, focusing on the research and development of sample pretreatment.

3. The diameter of the main shaft of the center movement is greater than 10 mm, and it is sold directly by the factory, not an OEM factory.

4. Reliable after-sales service, with offices all over the country to contact us 24 hours a day.

5. It has the ability to continuously research and develop and upgrade to ensure continuous technological updates.

6. It can provide a variety of sample solutions for different grinding solutions to meet the needs of subsequent experiments. Such as planetary, horizontal, vertical up and down, three-dimensional motion, three-dimensional centrifugal motion, cyclone, disc, cyclone and other types of grinding solutions.

New product features:

A new generation of JXFSTPRP-L? tissue grinder, using imported motors, anti-corrosion materials, enhanced motion shafts and other upgrades. The performance is fully optimized, the appearance is more beautiful, and it will bring you a different grinding experience!

Product Description:

Shanghai Jingxin?'s JXFSTPRP-CLN? cryogenic tissue grinder (patented product, counterfeiting must be punished! ZL2017305264903) is a special, fast, efficient, multi-tube consistent system. It can extract and purify the original DNA, RNA and protein from any source (including soil, plant and animal tissues/organs, bacteria, yeast, fungi, spores, paleontological specimens, etc.).

Put the sample and the grinding ball into the grinding machine (equipped with grinding tank or centrifuge tube/adapter), under the action of high-frequency oscillation, the grinding ball hits and rubs back and forth at high speed in the grinding machine, and the sample can be completed in a very short time Grinding, crushing, mixing and cell wall breaking.

Product Usage:

1. Suitable for grinding and breaking samples of various plant tissues, including roots, stems, leaves, flowers, fruits, seeds, etc.;

2. Suitable for grinding and breaking samples of various animal tissues including brain, heart, lung, stomach, liver, thymus, kidney, intestine, lymph node, muscle, bone, etc.;

3. Suitable for grinding and breaking samples of fungi, bacteria, including yeast, E. coli, etc.;

4. Suitable for grinding and crushing of food and medicine;

5. Suitable for grinding and crushing of volatile samples including coal, oil shale, wax products and other samples;

6. Suitable for grinding and crushing samples of plastics and polymers including PE, PS, textiles, resins, etc.

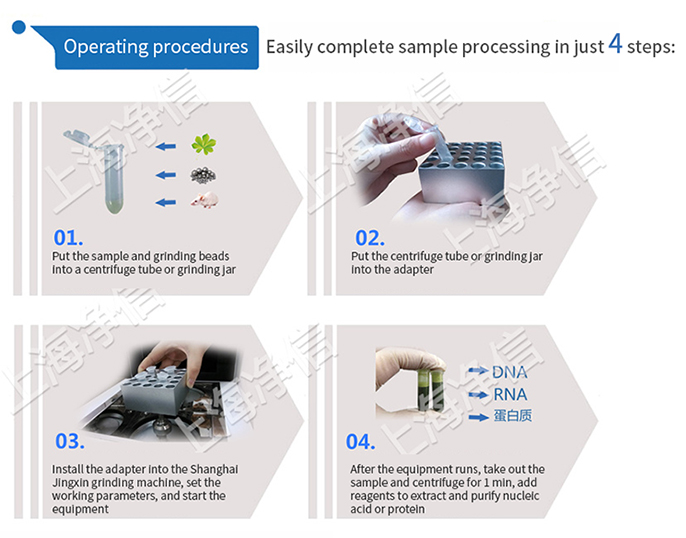

Operating procedures:


Features:

1. No damage to the sample composition: the grinding temperature can be customized, which can effectively inhibit nucleic acid degradation and retain protein activity;

2. High efficiency: Grinding of 2×24, 2×48, 4×96 samples within 1 minute;

3. Good repeatability: the same procedure is set for the same tissue sample to obtain the same grinding effect;

4. Easy to operate: built-in program controller, which can set parameters such as grinding time and rotor vibration frequency;

5. High safety: with safety cover and safety lock, no need to involve liquid nitrogen operation, high safety;

6. No cross-contamination: It is in a fully enclosed state during the grinding process to avoid cross-contamination;

7. Low noise: During the operation of the instrument, the noise is less than 55dB, which will not interfere with other experiments or instruments.

Product Parameters:

The main parameters

Parameter range

Application

Tissue homogenization, grinding, cell disruption, homogenization, material dispersion, preparation, sample mixing, shaking

Compatible sample volume

24*(0.2-0.5ML) /24*2ML /6*(7-15)ML /2*25ML /2*50ML, various specifications of grinding tubes can be customized

Feed and discharge size

There is no requirement for the feed, according to the size of the adapter; the discharge size is ~5um

Homogenization speed

10—70 HZ/S

Grinding ball material

Alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand

Grinding method

Wet grinding, dry grinding and low temperature grinding are all available

Dimensions

700*380*500

Weight

75KG

Whether with freezing function

Yes, adjustable from -50℃ to 37℃

※ It has the ability to upgrade to ultra-low temperature liquid nitrogen refrigeration or air refrigerator refrigeratio

Basic Configuration:

1. One host: one JXFSTPRP-CLN? cryogenic grinding machine

2. Adapter: two sets of 2ml adapters (including refrigeration)

3. Grinding tube: 500 grinding tubes for z

4. Grinding balls: one bottle of alloy steel/zirconia grinding balls

Precautions:

1. The instrument should be placed in a dry and ventilated environment;

2. The working voltage of the instrument is 220V;

3. When using liquid nitrogen, protective measures should be taken to prevent frostbite;

4. Before grinding, fix the adapter, tighten the vertical positioning screw, and fasten the safety lock;

5. The samples should be placed as symmetrically as possible to ensure the balance of forces during grinding;

6. After grinding, please turn off the power and return the safety lock;

7. Clean the adapter regularly to prevent the residual chemicals or samples from corroding it.

2020.12.21
上海凈信Tissuelyser高通量組織研磨儀在低溫破碎酵母細胞中的使用說明
使用上海凈信Tissuelyser全自動樣品快速研磨儀對酵母進行研磨,將不銹鋼鋼珠和樣本分別裝入研磨鋼罐中,然后放入到用聚苯乙烯盒子盛放的液氮中,當預冷凍過程結束后,時間一分鐘左右,或者直到原來沸騰的液體氮恢復平靜,將破碎罐從液氮中取出,并要將破碎罐沾有的液體全部清理干凈,以避免在破碎過程中發生爆炸。研磨鋼罐最好用坩堝鉗或大鑷子夾取出來,而且通常要帶經過冷凍的手套,凍傷以免。
