Immersion liquid nitrogen Cryogenic Grinder

Model:JXFSTPRP-MiniCL

Brand:Shanghai Jingxin

Specifications :PCS

Introduction:three patents patent number: CN201611192660.X patent number: CN201320039424.X patent number: CN2016201409584.9

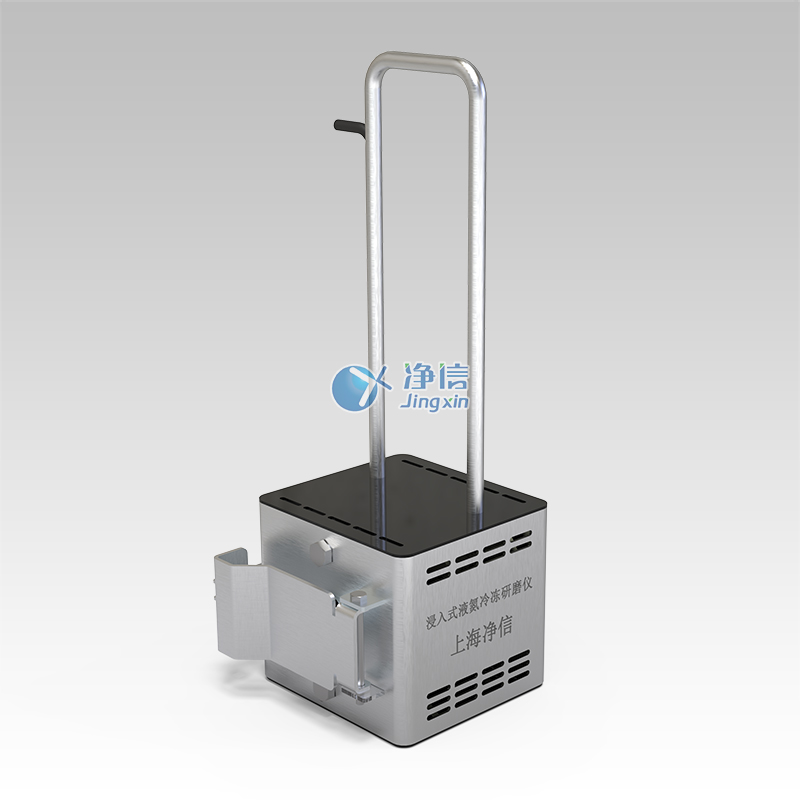

Immersion liquid nitrogen Cryogenic Grinder

Real liquid nitrogen freezing

Grinding and crushing at low temperature of -196℃

Has three patents

Patent number: CN201611192660.X

Patent number: CN201320039424.X

Patent number: CN2016201409584.9

Product description:

Jingxin Portable Liquid Nitrogen Freezing Grinding Machine is powerful, it is the world's technologically leading liquid nitrogen freezer grinding equipment, the whole process runs at ultra-low temperature, and it is recognized as an efficient grinding equipment in the market: its freezer grinding method is an advanced and efficient , Convenient sample processing method, which can handle samples that are difficult to handle by conventional methods, such as: plastic, rubber, resin, leather, hair, bone, wood, textile materials, etc., which is called the ultimate means of grinding. Liquid nitrogen cryo-grinding instrument has a wide range of applications, such as RNA/DNA detection in biochemistry, polymer structure analysis, determination of trace elements, food analysis, mineral research, medical and surgical assistance, drug performance testing, textile composition Identification and so on

Advantages and characteristics of liquid nitrogen cryogenic grinder:

1. Grinding at low temperature maintains the activity of biological substances, ensures the retention of volatile substances, prevents thermal degradation of thermally unstable compounds, and maintains original sensitivity to metabolites, isomers and complex compounds that are sensitive to thermal and mechanical pressure Characteristic substance.

2. Sample processing is uniform and repeatable.

3. The certainty after setting the grinding parameters makes the sample processing comparable.

4. Sample processing is convenient, fast and efficient.

Main performance:

1. Data accuracy and reproducibility are high;

2. The sample is always at the temperature of liquid nitrogen during the grinding process;

3. During the whole grinding process, the samples are in an independently sealed, ultra-low temperature state, and the integrity of the samples can be preserved to avoid cross-contamination between samples and ensure the control of dangerous and important samples;

4. The cleaning of the sample bottle is very convenient and has high durability;

5. The touch screen is used to set and control the pre-cooling time, grinding time, cycle period, operating frequency of the bumper and other parameters, as well as the entire working process of the instrument. 36 groups of data can be pre-stored for easy recall;

6. It adopts portable design, small body, and has a variety of grinding combinations for users with different application requirements to choose;

7. The instrument has extremely low failure rate, extremely high durability, reliability and safety.

Typical application:

1: Extraction of nucleic acid/protein

Grind various animal tissues (including bones, teeth, hair, muscles, and various organs) and plant tissues (roots, stems, leaves, fruits, seeds, etc.) under liquid nitrogen temperature, effectively inhibit nucleic acid degradation and retain enzymes Active, used for the pretreatment of extracting nucleic acid and protein from animal and plant tissue cells.

2: Pharmaceutical analysis and drug testing

Ultra-low temperature cryo-grinding enables metabolites, isomers and complex compounds that are sensitive to heat and mechanical pressure to maintain their original characteristics. Sensitive substances. Compound molecules in drugs and their metabolites are very important for pharmaceutical research or criminology experiments. of.

3: Medical research

Ultra-low temperature cryo-grinding has begun to be widely used in the field of medical research.

4: Pretreatment of special samples

For volatile substances, such as coal, oil shale, wax products, and many other organic materials with low molecular weight compounds, the matrix will evaporate quickly when ground at room temperature. Ultra-low temperature cryomills are used, because the whole process of the sample is sealed In the sample bottle and grinding at the temperature of liquid nitrogen, it can ensure the retention of volatile compounds, and then can be enriched and analyzed by gas purging.

5: Analysis of plastic/polymer composition

It is difficult to grind plastics, resins, textiles and polymers at room temperature, and it becomes very easy at ultra-low temperatures. At the same time, it can avoid the influence of temperature rise caused by friction during the grinding process on the molecular structure and composition information of the sample.

6: Detection of heavy metals

With the increasing requirements of various countries for the content of heavy metals in the environment and safety, the detection of heavy metals has become very important. For many difficult-to-handle samples, such as food packaging materials, clothing, children's toys, leather, rubber, and circuit boards Etc., the use of ultra-low temperature: the rapid and pollution-free treatment of the frozen grinder can greatly improve the efficiency of analysis and testing.

Ultra-low temperature cryogenic grinding machine has a wide range of applications in commodity inspection, forensic identification and other fields.

Technical parameter:

The main parameters

Parameter range

Name

Immersion liquid nitrogen cryomill

Model

JXFSTPRP-MiniCL

Grinding method

Liquid nitrogen freezing with electromagnetic vibration

Working frequency

1-20 time/sec

Working capacity

0.1-200mL

Single grinding cycle

2min

Display operation

LCD touch screen

Power

220V 50HZ

Coil material

Imported antifreeze copper

Grinding tank material

Transparent PE

Grinding time

1-9999S, arbitrarily adjustable

Grinding amount

1-4pcs

Pre-cooling time

Adjustable

Liquid nitrogen can be immersed

10L

Grindable temperature

Lowest -196℃

Oscillating electronic material

stainless steel

Dimensions

475mm*500mm*325mm

Weight

6KG

Comparison chart of grinding effect:

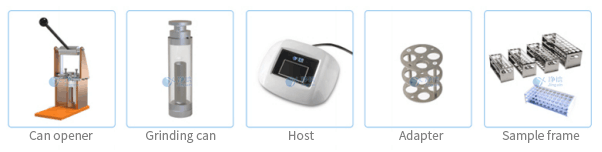

Product acessories:

2020.12.21
凈信浸入式液氮冷凍研磨儀:研磨豬皮提純細胞
通過研磨脫脂豬皮樣品,對樣品細胞進行提純,研究其藥物作用。破碎過程中脫脂豬皮組織需要在低溫中進行,樣品本身較為堅韌,處理過程比較繁瑣,所以客戶選擇使用上海凈信研磨儀進行前處理破碎。
2020.12.21
研磨界的終極高手|凈信浸入式液氮冷凍研磨儀研磨塑料
塑料充斥在人類的生活里,在日常生活中被大量使用。因為很多塑料制品都是一次性的,所以塑料形成的生活垃圾可謂驚人。因為塑料的用量大,難降解或降解后產生有毒物質,讓塑料垃圾的處理成為令人頭疼的大難題,現在很多城市都已經面臨塑料圍城的困境。
