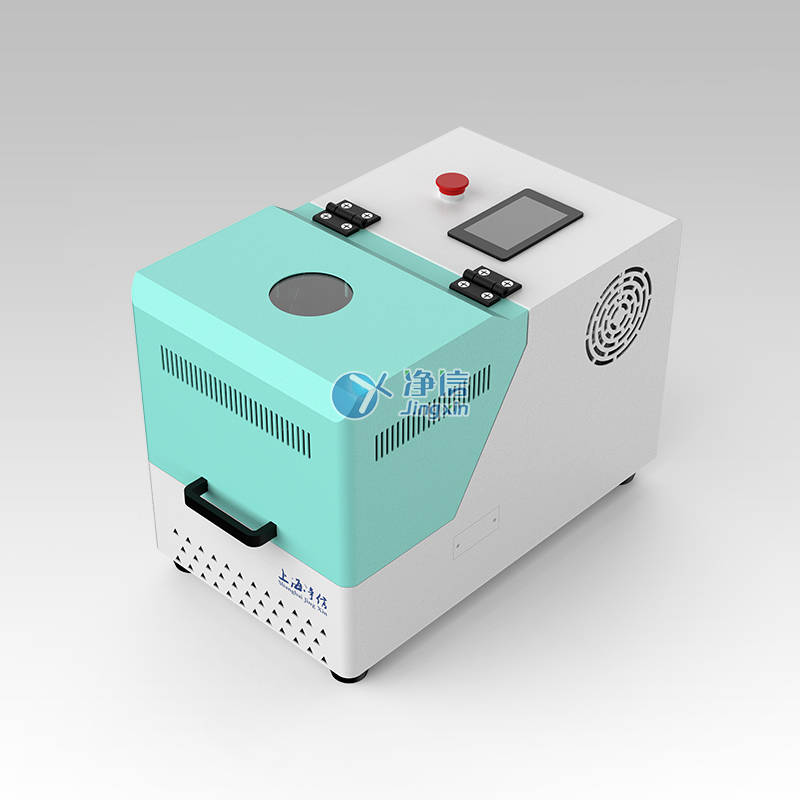

Soil Ball Mill

Model:JX-2GL

Brand:Shanghai Jingxin

Specifications :Set

Introduction:JX soil ball mill is a special high-performance mechanical equipment for the preparation of small ultra-fine powders, which is innovatively improved and developed by our company.

Product Description:

JX Soil Ball Mill is a special high-performance mechanical equipment for the preparation of small ultra-fine powders, which is innovatively improved and developed by our company. A large number of user applications show that the soil ball mill has the characteristics of small size, light weight, easy operation and no pollution, and is very suitable for the use of various types of soil grinding in the laboratory. The advanced planetary structure of the soil machine increases the grinding efficiency by more than ten times; the four tanks are separately charged, so that different materials do not affect each other. Gear transmission ensures the consistency and repeatability of the experiment; fast rotation, high energy Large, high efficiency and fine particle size; four samples of different sizes and materials can be obtained simultaneously in one experiment;

 Soil ball mill advantages:

1. Injection size: ≤10 mm, other materials ≤3mm, discharge particle size: <100nm, dry grinding or wet grinding;

2. The pressure can be set (by the scale), digital timing;

3. 7 kinds of grinding kits of different materials can be provided: stainless steel, agate, etc.

4. Real-time power display, crushing time setting, digital format, continuous operation from 1 to 99 minutes;

5. The grinding chamber is designed to be sealed and dustproof, with observation window;

6. High-power drive, with electronic monitoring device.


Technical parameter:

The main parameters

Parameter range

Brand name:

JXFSTPRP net letter

product name:

Soil Ball Mill

Model:

JX-2GL

Operation method:

LCD liquid crystal touch display

Injection size (varies in material):

≤10mm, other materials ≤3mm

Sample size:

<100nm

Processing volume:

50ml/can

Ball mill tank capacity:

4x100ml

Main disc speed:

35-435r/min

Ball mill rotation speed:

70-870r/min

Transmission ratio (planetary disc/ball mill):

1:2

Forward and reverse operation:

Yes

Continuous running time setting:

1-9999 min

Pause time setting:

1-999 min

Dangerous emergency stop:

Yes

Grinding Room Lighting Description:

LED blue light

Touch screen:

adaptation

Vector volume:

50ml -100ml

Ball Milling Media Material:

Stainless steel, agate, zirconia, corundum, nylon, teflon optional

Media Diameter:

3/5/10/15/20mm

Media Quality:

100-400g

Grinding method:

Dry grinding / Wet grinding

Low temperature cooling treatment:

Yes (additional)

Inert gas protection treatment:

Yes

Net weight:

29kg

Dimensions (length, width and height):

530*300*340mm

Standard:

JXFSTPRP Jingxin

Tank ball ratio:

Tank ball ratio:



Grinding jar

100ml

Effective volume

1-50ml

Ball size

Number of balls

5mm

300

10mm

30

15mm

15

20mm

8


Experimental case:

1. Description:

(1) Application field: environment;

(2) Materials/raw materials: soil, pebbles;

(3) Feed particle size: 1mm;

(4) Feeding amount: 500g;

(5) Material properties: brittle;

(6) Customer requirements: 50μm;

(7) Post-sequence analysis: particle size analysis.

2. Scheme:

(1) Equipment (instrument) selection: JX-2G, soil ball mill;

(2) Jar and ball configuration: agate jar with agate ball;

(3) Operating parameters: 500 r/min rotation, alternately running forward and reverse after 30 minutes;

(4) Grinding time: 1 hour;

(5) Result (recommended): JX-2G can be used to grind the soil;

(6) Grinding result: 100%<50μm.
