Soil Ball Mill

Model:JX-2G

Brand:Shanghai Jingxin

Specifications :Set

Introduction:JX soil grinder is a special high-performance mechanical equipment for the preparation of small ultra-fine powders developed by our company.

Product Description:

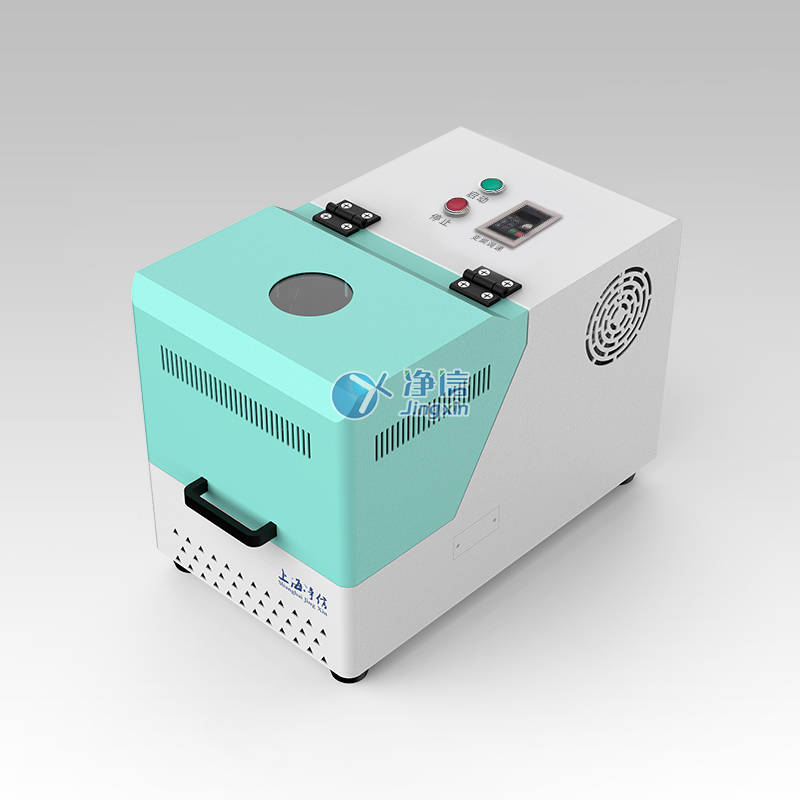

The JX type soil grinder is a kind of special high-performance mechanical equipment for the preparation of small ultra-fine powders developed by our company. A large number of user applications show that the soil grinder has the characteristics of small size, light weight, easy operation, and no pollution, which is very suitable for the use of various types of soil grinding in the laboratory. The soil machine uses an advanced planetary structure to increase the grinding efficiency more than ten times; the four tanks are separately loaded, so that different materials do not affect each other. Gear transmission ensures the consistency and repeatability of the experiment; fast rotation and energy Large, high efficiency, fine particle size; four samples of different sizes and materials can be obtained at the same time in one experiment;

Advantages of soil grinder:

1. Inlet size: ≤10 mm, other materials ≤3mm, discharge particle size: <100nm, dry or wet grinding can be performed;

2. Pressure can be set (via scale), digital timing;

3, can provide 7 kinds of different materials of grinding kits, stainless steel, agate, etc.

4 Real-time power display, crushing time setting, digital format, continuous operation from 1 to 99 minutes;

5 The grinding room is designed to be sealed and dust-proof, with an observation window;

6. High-power drive with electronic monitoring device.

Technical parameter:

Main parameters

 Parameter range

Brand Name:

JXFSTPRP Jingxin

Product name:

Soil grinder

Model:

JX-2G

Operation mode:`

LCD touch display

Sample size (different materials):

≤10mm, other materials ≤3mm

Sample size:

100nm

Processing capacity:

50ml/can

Ball mill tank capacity:

4x100ml

Main disc speed:

35-435r/min

Rotation speed of ball mill tank:

70-8700r/min

Transmission ratio (planetary disc/ball mill tank):

1:2

Forward and reverse operation:

 yes

Continuous running time setting:

1-9999 min

Pause time setting:

1-999 min

Dangerous emergency stop:

 yes

Grinding room lighting description:

LED blue light

Touch screen:

adaptation

Carrier volume:

50ml -100ml

Material of ball milling media:

stainless steel, agate, zirconia, corundum, nylon, polytetrafluoroethylene optional

Media diameter:

3/5/10/15/20mm

Media quality:

100-400g

Grinding method:

dry grinding / wet grinding

Low temperature cooling treatment:

Yes (additional)

Inert gas protection treatment:

Yes

Net weight:

29kg

Size (length, width and height):

530*300*340mm

Standard:

CE

Tank ball ratio:

Tank ball ratio:



Grinding jar

100ml

Effective volume

1-50ml

Ball size

Number of balls

5mm

300

10mm

30

15mm

15

20mm

8
