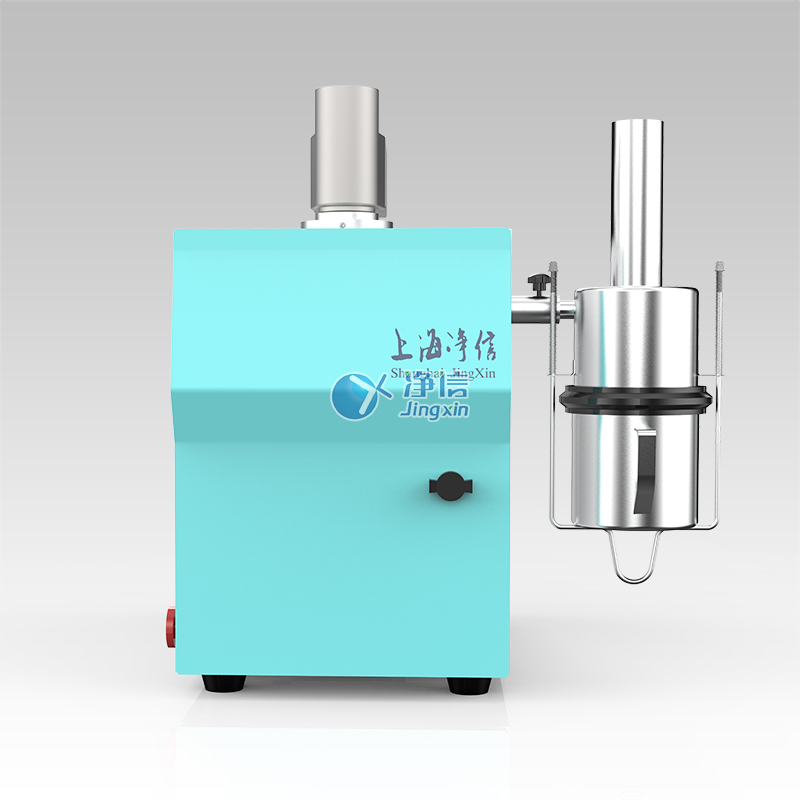

Automatic hammer cyclone mill

Model:JXFM110-II

Brand:Shanghai Jingxin

Specifications :Set

Introduction:This product is fully automatic, equipped with an automatic feeder, and can automatically feed at a preset speed

Product Description:

In the physical inspection and chemical analysis of grain quality, such as the analysis and inspection of grain viscosity and nutritional components, the measured samples must be crushed.

The hammer-type cyclone mill is a kind of crushing equipment with beautiful appearance, compact structure, easy operation, stable operation and durable. This equipment is mainly suitable for the crushing of samples of small and medium grains (water content conforming to national standards) such as wheat and rice in the grain industry. The samples crushed by this machine (samples passing through sieve plates with different apertures) are suitable for the determination of the quantity and quality of gluten, the sample preparation and the measurement and analysis of other fineness requirements such as falling number, near-infrared composition, grain viscosity, etc. .

Features:

1. High-speed, high-efficiency, fine and even crushed material. The sample is milled and hammered at a high speed (16800 revolutions/min) into fine uniform powder and then enters the stainless steel integrator with the high-speed airflow through the stainless steel sieve to prepare the sample.

2. The inner wall of the box is glued with domestic excellent sound-absorbing and sound-proof materials, with low noise.

3. The motor is equipped with a temperature protector. Once the motor exceeds the set temperature, it will automatically shut down for protection. After the temperature drops to normal, it can be restarted.

4. The high-speed airflow during sample crushing has a self-cleaning effect, and it is generally not necessary to manually clean the grinder during the sample crushing interval.

5. The crushed samples (samples passing through sieve plates with different apertures) are suitable for sample preparation and measurement and analysis of other fineness requirements such as gluten quantity, quality, falling value, near-infrared composition, and grain viscosity.

6. Irregularly shaped large-particle samples (such as large-grain corn), etc., must be pre-crushed by a laboratory grinding mill or directly fed and crushed.

7. The high-speed airflow in the hammer crushing process will cause the loss of water in the sample. Generally, samples with 10-20% water content will lose 5-10% of the water during the crushing process.

8. Integration of automatic blanking device and host

9. The processing chamber is made of stainless steel liner, and can be disassembled and cleane

This product is fully automatic, equipped with an automatic feeder, and can automatically feed at a preset speed.


technical parameter:

Main parameters

Parameter range

voltage:

AC220±10V

Working frequency:

50Hz

Motor power:

750W

Working room diameter:

110mm

Rotating speed of grinding hammer:

16800r/min

Sieve plate aperture:

0.5mm、0.8mm、1.5mm

Dimensions:

530×530×650mm

weight:

51KG

Test items

Sample

Sieve plate aperture (mm)

Sample requirements

ample particle size requirements

Aperture (mm)

Mesh (number of holes/inch)

Sieve number

Gluten value

wheat

0.8

95% passed

0.427

40

CQ16

Landing value



Grain

0.8

90% passed

0.505

35

CQ14

Viscosity

food

0.5

90% passed

0.270

60

CQ24

Viscosity

corn

0.8

90% passed

0.437

40

CQ16

Fatty acid value

Rice (paddy)

0.8

95% passed

0.437

40

CQ16

Fatty acid value

food

0.8

90% passed

0.437

40

CQ16

steamed bread

wheat

0.8

60% passed

0.161

91

CQ36

steamed bread

corn

0.8

75% passed

0.437

40

CQ16
