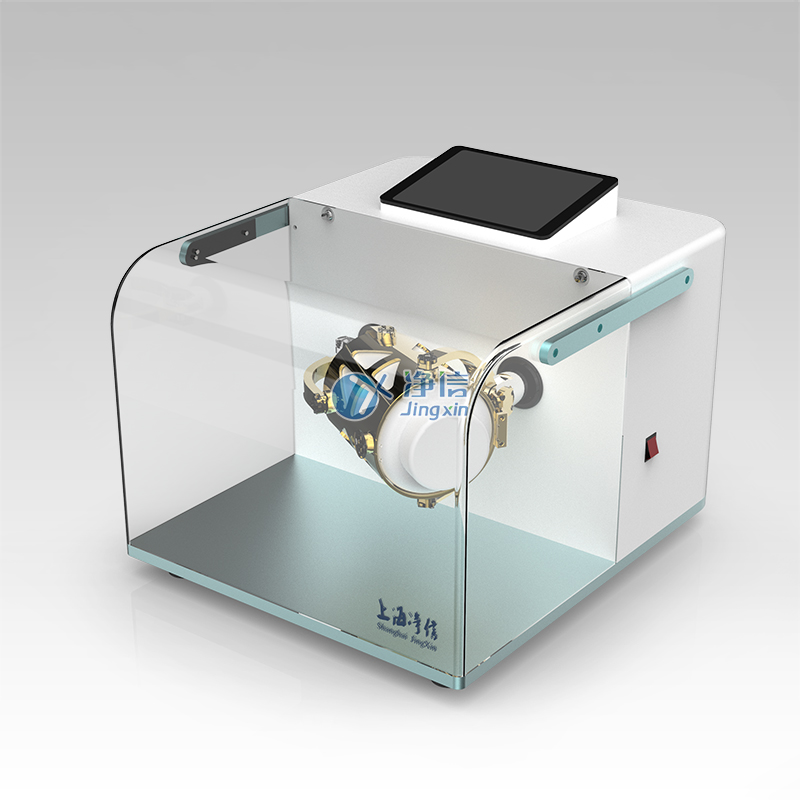

Three-dimensional mixer

Model:JXHY-2L

Brand:Shanghai Jingxin

Specifications :Set

Introduction:suitable for high uniformity mixing of powder and granular materials in pharmaceutical, chemical, environmental, food, light industry, electronics, machinery, mining and metallurgy, national defense industry and various scientific research units

Product Description:

The three-dimensional mixer is mainly used to mix different types, different particle sizes, and high-uniformity mixing materials. It is suitable for soft, medium-hard, brittle and fibrous material samples. The sample is mixed in a completely closed container, which can achieve dry-dry sample mixing, dry-wet sample mixing, and wet-wet sample mixing. Uniform mixing guarantees credible analysis results and is an ideal choice for quality control and research and development.


working principle:

In a completely airtight container, materials with different specific gravities are quickly turned, inverted, and shaken under the drive of the driving shaft, so as to prompt the materials to make a three-way compound movement along the cylinder body in circular, radial, and axial directions, thereby Realize the mutual flow, diffusion, accumulation and doping of various materials to achieve the purpose of uniform mixing. The whole process ensures that it is dust-free and easy to clean.

Application areas:

It is suitable for high uniformity mixing of powder and granular materials in pharmaceutical, chemical, environmental, food, light industry, electronics, machinery, mining and metallurgy, national defense industry and various scientific research units.


Product advantages:

Performance advantages of the three-dimensional mixer:

● Three-dimensional motion mode, no dead angle in all directions, smaller shearing force

● Large processing volume, high mixing degree

● Mixing containers of different materials to adapt to different samples

● Simple operation, convenient disassembly of the container and easy cleaning

● No dust pollution, no environmental pollution

● Stable performance, low noise


Product parameters:

Main parameters

Parameter range

Model

JXHY-2L

JXHY-5L

JXHY-10L

Dimensions (mm):

560*490*340

720*650*950

850*700*1050

Instrument weight:

50kg

150kg

180kg

Working speed:

0-120 rpm

0-24 rpm

0-24 rpm

Test tube specifications:

2L

/

/

rated power:

300W

550W

550W

power supply:

220 V  50Hz

/

/

Loading dissolution volume (L)

/

4

8

Loading weight:

/

2.5kg

5kg

Hopper capacity:

2L

5L

10L

Effect picture:
