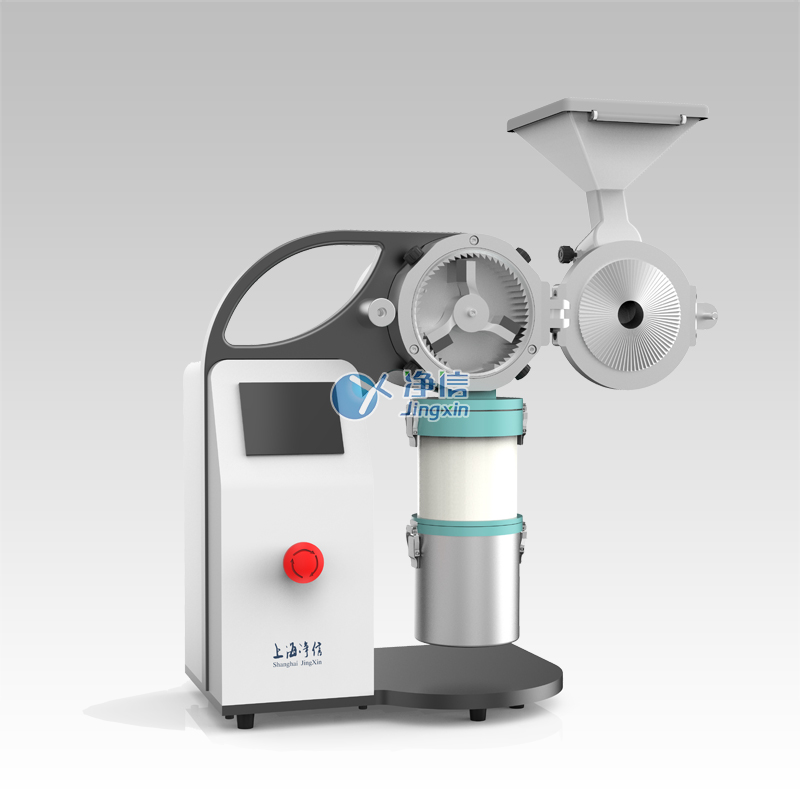

Cross-beating grinder

Model:JXQJ-500

Brand:Jingxin

Specifications :Taiwan

Introduction:Cross-percussion mill JXQJ-500 realizes the crushing process through percussion, impact and shear effects. The crushed sample passes through the feeding funnel and directly enters the center of the crushing chamber.

Product Description:

The cross-percussion mill JXQJ-500 realizes the crushing process through percussion, impact and shear effects. The crushed sample passes through the feeding funnel and directly enters the center of the crushing chamber. The sample captured by the cross-beating rotor is crushed between the impact crushing plate of the rotary knife and the tooth-shaped crushing insert. Once the sample particle size is smaller than the sieve aperture, they enter the receiving container. The percussion rotor sucks in a large amount of air through the feeding funnel channel, thereby accelerating the speed of the crushed sample leaving the crushing chamber. The subsequent connected filter system can recover the fine particles in the airflow.

Product advantages:

Brushless motor, stable operation, low noise

Frequency conversion speed control module

Security Setting Module

Various screening dies and rotors of different materials can be selected

Application areas: seeds, soil, metal ore, glass, coking coal, minerals, oxide ceramics, slag, ballast, cement slag, etc.

technical parameter:

Main parameters

Parameter range

Motor input/output power

1000/600 W

Speed

3000-6500 rpm, digital display

Tangential speed:

shear grinding head 25m/s

impact grinding head 35m/s

Crushing cavity volume

300mL

Noise level

70 dB

Power

220V/50HZ

Protection class

IP 35
