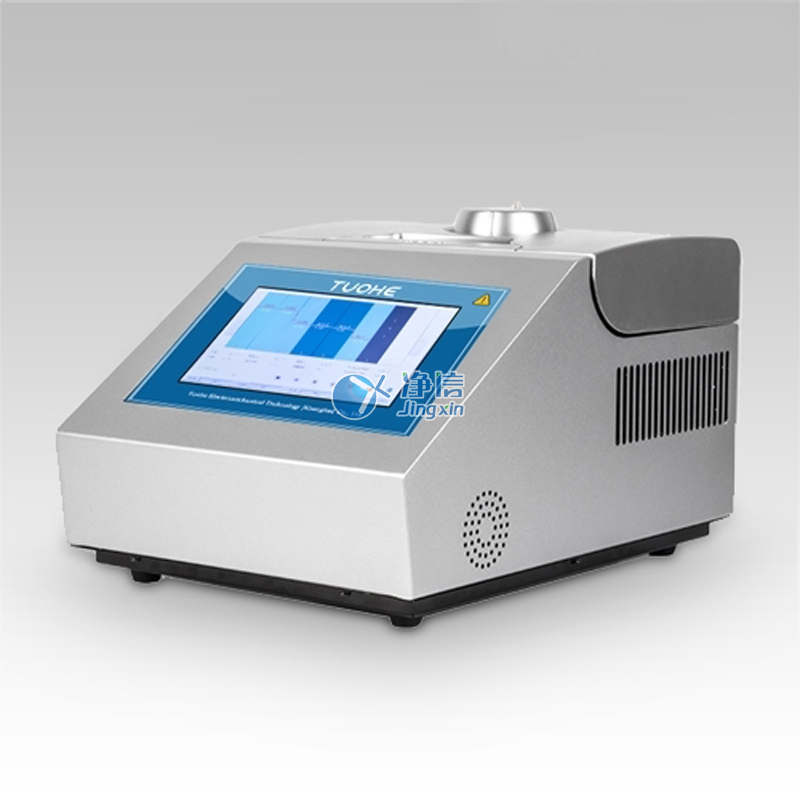

Gene amplification instrument PCR instrument THT-96G (gradient type)

Model:THT-96G (gradient type)

Brand:Jingxin

Specifications :Set

Introduction:Gene amplification instrument PCR instrument gradient type fully considers the special requirements of PCR experiments,and has carried out a targeted design for the temperature control of the instrument,......

PCR amplification instrument, also known as PCR gene amplification instrument, PCR nucleic acid amplification instrument, polymerase chain reaction nucleic acid amplification instrument, is a kind of amplification of specific DNA using PCR (Polymerase chain reaction, polymerase chain reaction) technology equipment.


Features:

1. Imported core parts, guaranteed quality and life,

2. 7-inch high-resolution color large screen, easy to operate

3. Excellent temperature uniformity, the best experimental results can be obtained

4. Support Chinese and English, users can switch freely

5. Unlimited download of programs via U disk

6. Hot lid repressurization technology, no matter how many sets of sample tubes are running, it can keep the sample tube pressure constant, and the sample tube is in close contact with the sample stage

7. Support Chinese and English, users can switch freely

Application field

It is widely used in medical and biological laboratories, for example, it is used to determine whether the sample will show a genetic disease map, the diagnosis of infectious diseases, gene replication, and paternity testing.


PCR instrument parameters:

Main parameters

Parameter range

Model

THT96G

(gradient type)

THT96

(standard type)

THT48

(standard type)

Temperature rise and fall technology

Semiconductor refrigeration

LCD

7-inch true color screen, curve graph display program

U disk function

Unlimited download of programs via U disk

Communication Interface

USB2.0*2 RS232

Support mouse

Use multi-user names;

Computer connection

Password protection

Wireless connection, one computer can connect 100 PCR instrument at the same time; The cable connection

Support mouse

Have

Language

Support Chinese and English

Sample stage capacity

0.2ml*96 hole

0.2ml*48 hole

Sample stage temperature range

0℃-100℃

Maximum heating rate

5℃/Second

Maximum cooling rate

5℃/Second

Temperature uniformity of sample stage

≤±0.2℃

Temperature accuracy of sample stage

≤±0.2℃

Temperature display resolution

0.1℃

Temperature control method

Analog tube + sample stage

Variable temperature speed adjustable

Have

Gradient temperature accuracy

≤±0.2℃

None

Gradient temperature uniformity

≤±0.2℃

None

Gradient range

30℃-100℃

None

Temperature range

0-30℃

None

Number of program storage

The instrument can store 120 programs, and can download unlimited programs via U disk

Maximum number of steps

40, can do multiple nested loops

Maximum number of cycles

100 standard loops (up to 60,000 nested loops)

Time increase/decrease

1-120 seconds, can do Long PCR experiment

Temperature increase/decrease

0.1-10.0℃, can do Touchdown PCR experiment

Auto pause

Have

Power failure protection

Have

heat preservation

Infinite holding time

Run time display

Have

Real Time Clock

Have

Hot lid temperature

30℃-110℃ adjustable

Heat cover height

Stepless free adjustment, adapt to different PCR tubes

Hot lid repressurization technology

Two levels of adjustment, no matter how many sample tubes are running during the experiment, the pressure of the sample tube can be kept constant

The hot lid closes automatically

When the set temperature of the sample stage is lower than 30℃ or the program ends, it will automatically shut down

Input power, power

Universal power supply (220VAC/47-65Hz), 200W-600W

Size, net weight

303mm*243mm*273mm,9Kg

notepad

Have

Tm value calculated

Have

More sample table capacity

0.2ml*96 hole+0.5ml*77 hole, 0.2ml*48 hole+0.5ml*48 hole 0.2ml*108 hole +0.5ml*88

hole,0.2ml*384 hole,0.2*48 hole,0.2ml*32 hole。Can add,
