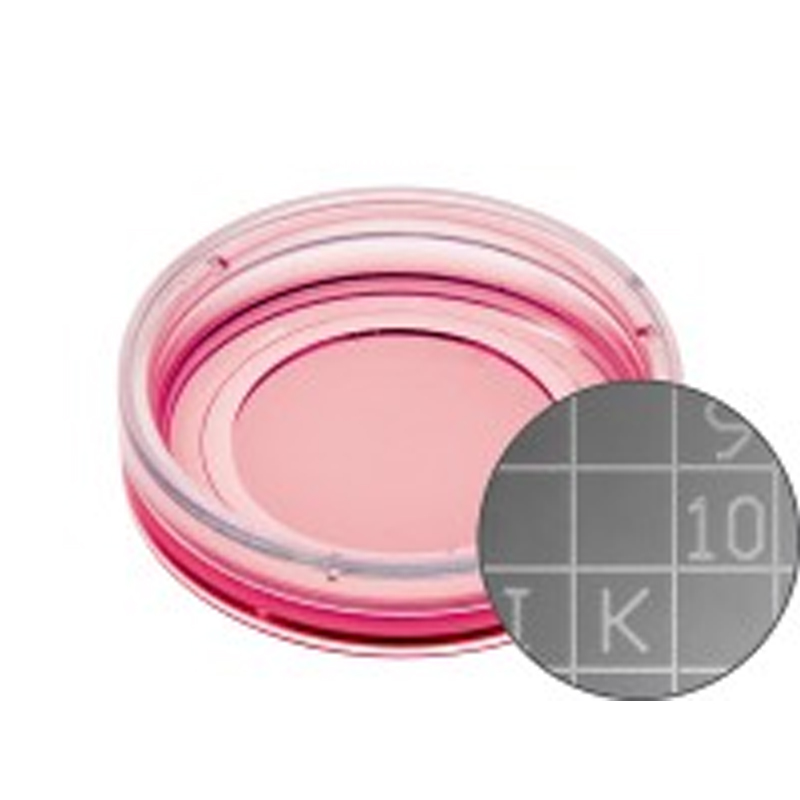

ibidi細胞定位格子培養皿μ-Dish 35mm Grid-500
35mm具500um網格刻度 ibidi標準底部的培養皿
應用:
1.細胞或細胞簇的再定位
2.細胞計數,例如:細胞轉染效率計算
3.細胞運動觀察
4.細胞顯微操作中單細胞處理
貨號:
貨號 | 產品名稱 | 規格(個/盒) |
81148 | μ-Dish 35 mm,高壁,玻璃底,50微米格子培養皿 | 30 |
81168 | μ-Dish 35 mm,高壁,玻璃底,500微米格子培養皿 | 30 |
80156 | μ-Dish 35 mm,低壁,ibiTreat底部處理,500微米格子培養皿 | 60 |
80151 | μ-Dish 35 mm,低壁,無包被,500微米格子培養皿 | 60 |
81166 | μ-Dish 35 mm,高壁,ibiTreat底部處理,500微米格子培養皿 | 60 |
81161 | μ-Dish 35 mm,高壁,無包被,500微米格子培養皿 | 60 |
產品特點:
1.特別適合細胞或細胞簇的定位和重找回;
2.獨特的ibidi標準底部設計,180um的蓋玻片尺寸底部厚度,適合高分辨率顯微觀察;
3.獨特的 ibiTreat 底部包被,適合大多數細胞的貼壁培養;
4.特殊蓋部設計減小液體揮發。
技術特征:
1.直徑為35mm標準樣式的培養皿;
2.具500μm 網格刻度;
3.字母或數字標記(A-U; 1-20);
4.替代選擇的玻璃底部產品:μ-Slide 35 mm, high glass bottom with Grid-50 or with Grid-500;
5.獨特的 ibiTreat 組織培養處理表面適合大多數細胞的貼壁生長;
6.生物相容性材料制作,不含膠水,無細胞毒性影響;
7.特殊的蓋部設計,減小液體揮發。
產品規格:
Grid repeat distance | 500 μm | Growth area | 3.5 cm2 |
? μ-Dish | 35 mm | Growth area | 21 mm |
Volume high / low | 2 / 0.8 ml | Height with lid high / low | 14 / 9 mm |
底部 | Ibidi標準 |
Lid with Lock Position
The special lock feature in all ibidi μ-Dishes enables the user to minimize evaporation. The lock position provides excellent conditions for long term studies in non humidified environments. Gas exchange (carbon dioxide, oxygen) during cell culture is maintained thanks to the gas permeable plastic material of the dish.
TIP: Use the locking feature only if minimal evaporation is
required, i.e., outside incubators, non humidified microscopy stages, etc.
Optical properties | ||
Refractive index (nD 589 nm) | 1.52 | 1.52 |
Abbe number | 56 | 55 |
Thickness | #1.5 (180 μm) | #1.5 (170 μm) |
Material | Microscopy plastic | D 263M Schott borosilicate glass |
Autofluorescence | Low | Low |
Transmission | Very high (even ultraviolet) | High (ultraviolet restrictions) |
Birefringence (DIC) | Low (DIC compatible*) | Low (DIC compatible*) |
Other aspects | ||
Surface modifications | ibiTreat – tissue culture treated Uncoated – hydrophobic | Only pure glass |
Protein coatings | Possible | Possible |
Gas permeable | Yes | No |
Material flexibility | High | Low |
Breakable | No | Yes |
Recommended for | All kinds of fluorescence microscopy | TIRF and single photon |
